Product Overview

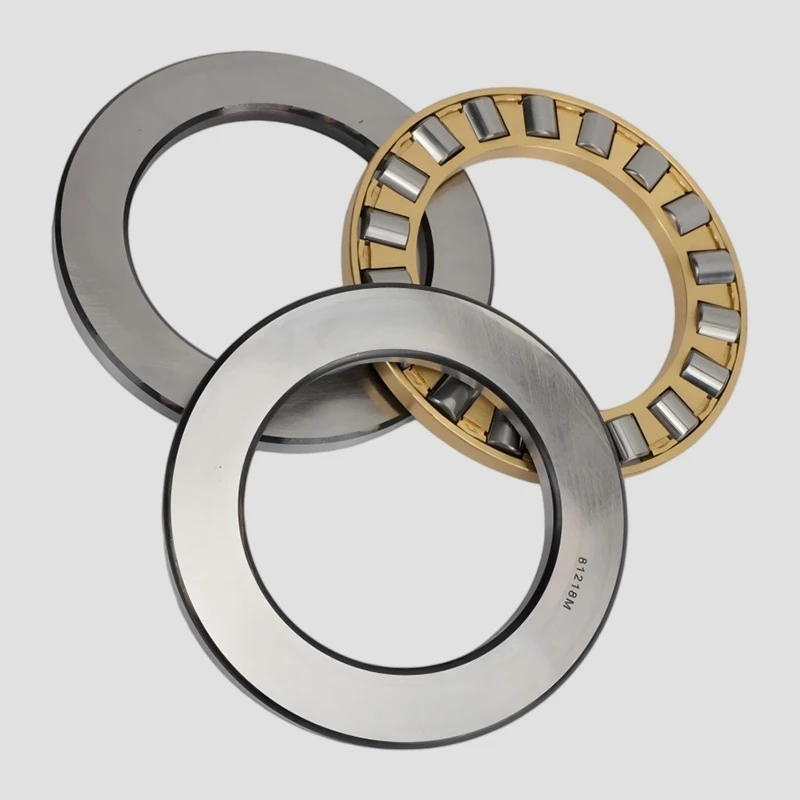

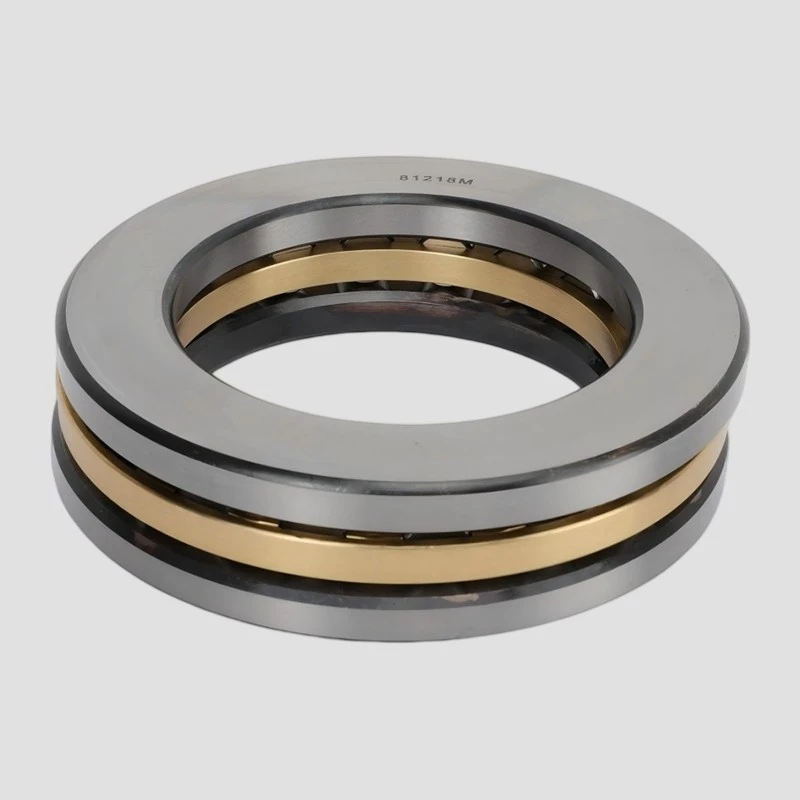

ZWZ thrust cylindrical cov menyuam bearings muaj xws li ncej ntxhua khaub ncaws, tsev ntxhua khaub ncaws, crowned cylindrical rollers, thiab tawb sib dhos. Lub crowned nto ntawm lub rollers pab faib lub siab sib npaug ntawm cov dov cov ntsiab lus thiab raceways, muab kev ua tau zoo thiab txhim khu kev qha.

Cov no yog cov kabmob sib cais, yog li txhua yam tuaj yeem ntsia tau tus kheej. Thaum lub sij hawm kev teeb tsa, kev ua tib zoo sib xws yog tsim nyog - ncej thiab vaj tse yuav tsum nyob twj ywm raws nraim tsis muaj angular qaij. Tsim tshwj xeeb rau cov khoom siv qis- ceev, cov kabmob no txhawb nqa hnyav ib qho kev taw qhia axial loads, muab siab axial txhav, thiab tsis txwv radial txav.

Yam khoom tseem ceeb

● Optimized roller tsim kom txo tau kev ntxhov siab thiab txhawb nqa txawm tias thauj khoom, pab kom ntev kev pab cuam lub neej.
● Cov qauv sib cais tso cai rau kev txhim kho yooj yim dua, tshem tawm, thiab tu txhua hnub.
● High axial load peev xwm thiab muaj zog axial rigidity, ua rau lawv haum rau kev ua haujlwm hnyav.
● Zoo haum rau cov ntawv thov ceev uas xav tau kev txhawb nqa axial ruaj khov.
● Yuav tsum muaj kev sib raug zoo; angular misalignment ntawm ncej thiab vaj tse yog tsis tso cai.

Kev faib khoom

1. Tib-Direction Thrust Cylindrical Cov Menyuam Bearings

Tsim los nqa axial loads los ntawm ib qho kev taw qhia nkaus xwb, siv rau hauv cov khoom siv nrog unidirectional axial quab yuam.

2. Ob-Direction Thrust Cylindrical Cov Menyuam Bearings

Muaj peev xwm txhawb nqa axial loads los ntawm ob qho tib si cov lus qhia, siv qhov twg dual-direction axial qhov chaw xav tau.

Technical Specifications

Dimension

● Qhov Loj: 30 hli - 1800 hli

● Sab nraud txoj kab uas hla: 52 hli - 2080 hli

● Dav: 4 hli - 250 hli

Tolerance Standards

● ZWZ thrust cylindrical cov menyuam bearings yog tsim raws li GB307.4. Cov chav kawm kam rau siab muaj xws li P0, P6, P5, thiab P4.

Cage Design

● Brass machined khoom tawb: txheem rau bearings nrog txheej kab D Tsawg dua los yog sib npaug li 500 mm

● Steel khoom tawb: siv rau bearings nrog txheej kab D > 500 mm

● Txheem lub tawb tsim nqa tsis muaj qhov tshwj xeeb

Load suav

● Sib npaug dynamic load: P=Fa

● Sib npaug zoo li qub load: P₀=Fa

Nrov qauv & Specifications

Bearing npe	Qhov siab d (mm)	Sab nraud D (mm)	Dav T (mm)	Dynamic Load Cr (kN)	Limiting ceev (Nrog roj) [r/min]	Limiting ceev (roj) [r/min]
8 1206 tzs	30	52	16	59.4	3200	3800
8 1210 X 1 ZSTN1	50	78.6	22	103	1500	1800
89315	75	135	36	265	640	860
81216	80	115	28	140	690	920
89317/P4	85	150	39	300	1420	1900
81220	100	150	38	230	540	720
81124	120	155	25	154	950	1400
81128	140	180	31	193	670	900
81132	160	200	31	216	630	850
82635	175	250	82	325	400	530
81236	180	250	56	545	280	380
81240	200	280	62	700	360	500
8 9340 ,wb	200	340	85	1540	210	280
81144	220	270	37	320	240	320
81148	240	300	45	490	420	2280
81152	260	320	45	515	430	560
81156	280	350	53	653	170	230
81260	300	420	95	1540	190	250
81268	340	460	96	1630	200	300
81172/P5	360	440	65	890	180	270
81176	380	460	65	930	260	360
81180	400	480	65	1000	110	150
81184	420	500	65	940	200	280
81188	440	540	80	1430	170	230
81192/P5	460	560	80	1400	210	290
81196F1	480	580	80	1550	150	200
811/500	500	600	80	1600	150	200
811/530	530	640	85	1750	180	250
811/560	560	670	85	1760	180	260
811/600	600	710	85	1730	170	260
817/610/P4YB5	610	710	65	1300	170	260
817/650 ZWM	650	930	130	5300	150	230
812/710/P4YB5	710	950	190	5860	120	150
811/750/SPYB5	750	900	120	3250	120	170
817/765 ZWM 1	765	1360	220	15000	80	100
811/800	800	950	120	3400	130	180
812/800	800	1060	205	7300	80	100
811/850	850	1000	120	3400	100	150
817/{1}/ P4YB5	860	1000	96	2200	130	180
811/900	900	1060	130	4000	100	150
812/900	900	1180	220	8000	70	100
811/950	950	1120	135	4000	90	140
812/950	950	1250	236	10000	60	90
811/1000	1000	1180	140	4700	90	120
812/1000	1000	1320	250	10100	60	80
811/1060	1060	1250	150	5300	80	110
811/1120	1120	1320	160	6000	80	100
871/1180 ZW/HC	1180	1400	100	4730	87	110
871/1320ZW/P4YB5	1320	1540	100	5450	80	100
871/1800/P4YB5	1800	2080	150	9320	60	90
